Contemporary Research Off-Air Tuners Model 232-ATSC 4 HDTV (High Definition Television) tuner

Overview Specifications I/Os Images and Documentation

Manufacturer:	Contemporary Research
Model:	232-ATSC 4
Category:	A/V Sources
Subcategory:	Off-Air Tuners
Status:	Current
Part Number:
Long Description:	The new 232-ATSC 4 HDTV Tuner, our 4th-generation HDTV tuner, adds new capabilities to the industry-standard 232-ATSC series. New features include tuning MPEG-4 programs, up to 1080p output, and more efficient operation. The new tuner is fully compatible the previous 232-ATSC+1 tuner for control, operation, and rack mounting. The integrator-friendly HDTV tuner is controllable with 2-way RS-232 and IP Telnet, as well as wireless and wired IR commands. An onboard Web page enables remote Web control. A new menu-driven display simplifies setup, and a front-panel USB port makes firmware updates a snap. The new compact enclosure allows mounting of two tuners in a single rack space. A universal TV tuner, the 232-ATSC 4 can receive both analog and digital MPEG-2/MPEG-4 channels, in ATSC, NTSC, and clear QAM formats. Using an optional RF switcher, the tuner can switch between antenna and cable feeds.
Features:
Tunes analog and digital channels in ATSC, NTSC, and clear QAM formats Accepts MPEG-4 TV channels, as well as standard MPEG-2 Scales video output from 480p to 1080p Simulcasts from HDMI and composite video ports, as well as stereo, and digital coax and TOSlink optical audio ports Switches to RGBHV or Component output from front-panel settings, Web page or control commands Dolby 5.1 or PCM/Variable PCM digital audio formats for digital audio ports and HDMI Front-panel text and on-screen menus for tuner setup Web pages for remote setup and control Supports dual Air/Cable tuning with optional RF switch Analog and digital closed captioning Internal scaler displays channels at selected resolution Rack-mountable two across in 1RU Full ASCII 2-way RS-232/USB commands, AMX, Crestron, and RTI modules available, discrete IR commands RS-232 can be daisy-chained to control up to 9 tuners from a single RS-232 port, or control any number of tuners via IP Front-panel USB port for control firmware and rear USB for HD processor updates via a memory stick Meets RoHS and California energy-saving standards Includes HD2-RC IR remote and 12 VDC power supply, when needed, also available with 6A 12 VDC supply that drives up to 4 tuners Options for single and dual rack mounts, external RF-AB RF switch
Product URL:	http://contemporaryresearch.com/products/catalog/232-ATSC+4+HDTV+Tuner/49

MVP Partner| Data Subscription

Height:	1.75 in
Width:	8.50 in
Depth:	8.00 in
Weight:	2.25 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	1.0
Phase:	Finish
Labor Hours:	0.25

Inputs

Terminal	Label	Signal

DCPLUG	POWER	12VDC
DB9	RS232	CTRL
3.5MM	IR	CTRL
RJ45	ETHERNET	DATA
SCREW	GND	GND
F	RF	RF
USB	SERVICE	DATA

Outputs

Terminal	Label	Signal

RCA	COMPONENT	YPRPB
DB15	PC	VGA
HDMI	HDMI	DVID
RCA	COMPOSITE	CVID
RCA	COAXIAL	SPDIF
TOSLINK	OPTICAL	SPDIF
RCA	AUDIO	AUD-RL

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

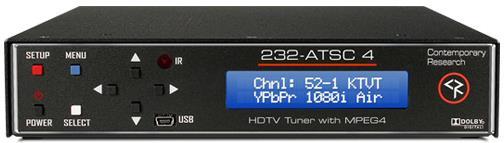

	Front Panel Image 300 x 250 full front panel image

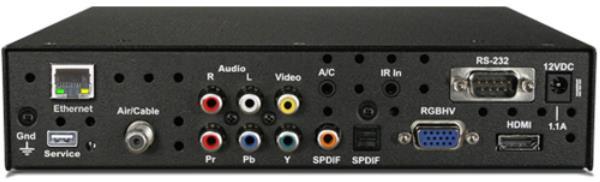

	Back Panel Image 300 x 250 full back panel image
	Spec Sheet
	User Manual
