Powersoft Stereo (2-Channel) Model DIGIMOD 1000 2 Channel power amplifier module
Overview Specifications I/Os Images and Documentation
Manufacturer: Powersoft
Model: DIGIMOD 1000
Category: Amplifiers
Subcategory: Stereo (2-Channel)
Status: Discontinued
Part Number:

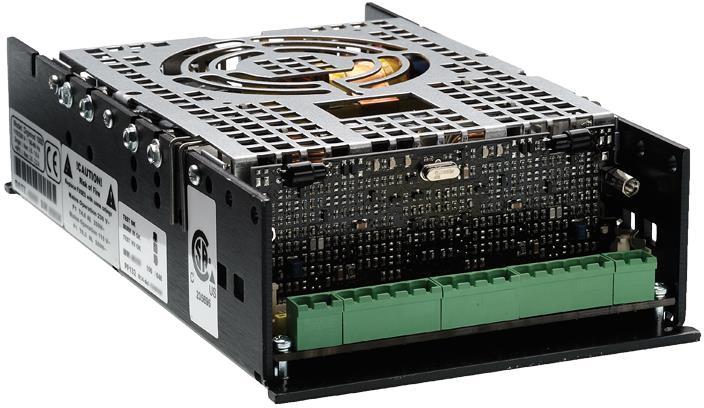

Long Description: We could say that the DigiMod 1000 is the footprint of DigiMod Series: a powerful, compact and lightweight 2-channel bridgeable amplifier with optional DSP integration, which premium audio quality and reliability is proven after several years "on the road" inside the powered products of top level loudspeaker brands. Able to deliver 2x500W on 4 and 1x1000W on 8 in bridged mode, the DigiMod 1000 can be the perfect solution for a great variety of applications: small to mid subwoofers, stage/studio monitors, 2-way cabinets and array elements as well as high power bass/guitar amplifiers. The versatility of the DigiMod can do even better: in fact, its power supply can drive the additional 2-channel output stage DigiMod 1000NPS, to become a multi-channel platform able to power 3-way loudspeakers or small PA systems "sub + satellites" where up to 1000W are needed for the low end. Even when used in combination with the DigiMod 1000NPS for up to 4-channel configuration, all the signals can be fully processed by only one of the optional DSP boards specifically designed by Powersoft for perfect interaction with DigiMod Series amplifier modules.
Features:
  • Automatic mains voltage switch for worldwide operation
  • Thermal protections (power limiting - thermal shutdown)
  • Short-circuit/overload output protection
  • Clip limiter
  • Permanent signal limiter
  • High frequency protection
  • Auxiliary output voltage (12V regulated, 200mA max)
  • Bypass line outputs for external active/passive filters
  • Mute command
  • Temperature controlled internal Fan and output
  • Optional DSP board
  • Remote Control & Networking with optional DSP board
  • Fully integrate in Armona Pro Audio Suite, for complete monitoring and control of the wholesystem.
Product URL: http://www.powersoft-audio.com/en/oem-solutions/digimod#DigiMod%201000
MVP Partner| Data Subscription
Height: 2.71 in
Width: 4.80 in
Depth: 8.50 in
Weight: 2.20 lbs
BTU: 0.00
Volts: Volts
Rack Mounted: No
Rack Units: 0.0
Phase: Finish
Labor Hours: 1.00
Inputs
No Inputs
Outputs
No Outputs
Front Panel Thumbnail 50 x 50 front panel thumbnail image
Front Panel Image 300 x 250 full front panel image
Spec Sheet
User Manual
