Alcatel-Lucent Switches Model OS6250-8M 8 Port stackable layer-2+ Fast Ethernet LAN value Metro series, Non-PoE switch, Internal AC power

Overview Specifications I/Os Images and Documentation

Manufacturer:	Alcatel-Lucent
Model:	OS6250-8M
Category:	Networking
Subcategory:	Switches
Status:	Discontinued
Part Number:
Long Description:	The Alcatel-Lucent OmniSwitch 6250 is a stackable layer-2+ Fast Ethernet LAN value switch family for both the enterprise and Ethernet access segments. The enterprise models address the small and mid-sized enterprise edge and branch office environments, while the metro models address the residential and business Ethernet access supplied by service providers. With an optimized design for flexibility and scalability as well as low power consumption, the OmniSwitch 6250 runs the field-proven Alcatel-Lucent Operating System (AOS), providing an outstanding edge solution for highly available, self-protective, easily managed and eco-friendly networks.
Features:
Edge of small to mid-sized networks Branch office enterprise workgroups Residential or metro Ethernet triple-play applications Offers innovative half-rack-wide models for a great variety of switch combination deployments Highly efficient and optimized in their form factor, power consumption and acoustic output A feature-rich, cost-effective, 10/100 stackable switch built on the latest ASIC technologies Scalability from 24 to 192 Fast Ethernet and 16-gigabit uplink ports The Alcatel-Lucent virtual chassis design provides resiliency with integrated 5 G HDMI performance Optional metro services feature license for service provider deployments Support for IEEE 802.3af as well as IEEE 802.3at-compliant PoE AC or DC redundant power supplies Limited Lifetime Warranty Software and Hardware Support included
Product URL:	http://enterprise.alcatel-lucent.com/?product=OmniSwitch6250&page=overview#

MVP Partner| Data Subscription

Height:	1.73 in
Width:	8.46 in
Depth:	11.50 in
Weight:	3.79 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	0.50

Inputs

Terminal	Label	Signal

DC	POWER	12VDC
RJ45	ETHERNET 1	DATA
RJ45	ETHERNET 2	DATA
RJ45	ETHERNET 3	DATA
RJ45	ETHERNET 4	DATA
RJ45	ETHERNET 5	DATA
RJ45	ETHERNET 6	DATA
RJ45	ETHERNET 7	DATA
RJ45	ETHERNET 8	DATA
SFP	GIGABIT 1	DATA
SFP	GIGABIT 2	DATA
RJ45	STACK 1	DATA
RJ45	STACK 2	DATA

Outputs

Terminal	Label	Signal

RJ45	ETHERNET 1	DATA
RJ45	ETHERNET 2	DATA
RJ45	ETHERNET 3	DATA
RJ45	ETHERNET 4	DATA
RJ45	ETHERNET 5	DATA
RJ45	ETHERNET 6	DATA
RJ45	ETHERNET 7	DATA
RJ45	ETHERNET 8	DATA
SFP	GIGABIT 1	DATA
SFP	GIGABIT 2	DATA

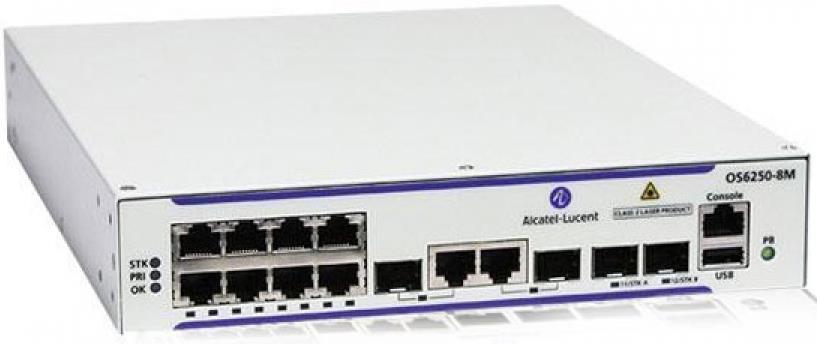

	Front Panel Thumbnail 50 x 50 front panel thumbnail image
	Front Panel Image 300 x 250 full front panel image
	Spec Sheet
