Cypress Card Readers Model SPX-5631
2.4 GHz Wireless wiegand reader extender
Overview
Specifications
I/Os
Images and Documentation
| Manufacturer: | Cypress |
| Model: | SPX-5631 |
| Category: | Access Control |
| Subcategory: | Card Readers |
| Status: | Current |
| Part Number: | 816684001765 |
| Long Description: | A member of the Wireless products family, the SPX-5631 wireless wiegand bridge allows 1 reader and associated door/gate hardware to be located up to 2,000 feet (outdoors line of site) away from any Wiegand, MagStripe, or Special based control panel. Housed in weatherproof housing. The wireless connection is totally supervised and secure. AES Encryption is available. Using Cypress Suprex Lynk technology and the EXP-2000 expansion module allows for the addition of as many as 2 doors and readers over the same wireless connection. Includes both remote (reader/door) and central (panel) units Built on Suprex Technology. |
| Features: | |
|
|
| Product URL: | http://cypressintegration.com/products/reader-extenders/spx-5631/ |
| Height: | 9.25 in |
| Width: | 7.00 in |
| Depth: | 2.25 in |
| Weight: | 1.30 lbs |
| BTU: | 0.00 |
| Volts: | Volts |
| Rack Mounted: | No |
| Rack Units: | 0.0 |
| Phase: | Finish |
| Labor Hours: | 1.00 |
| Inputs | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Outputs | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Front Panel Thumbnail 50 x 50 front panel thumbnail image |
 |

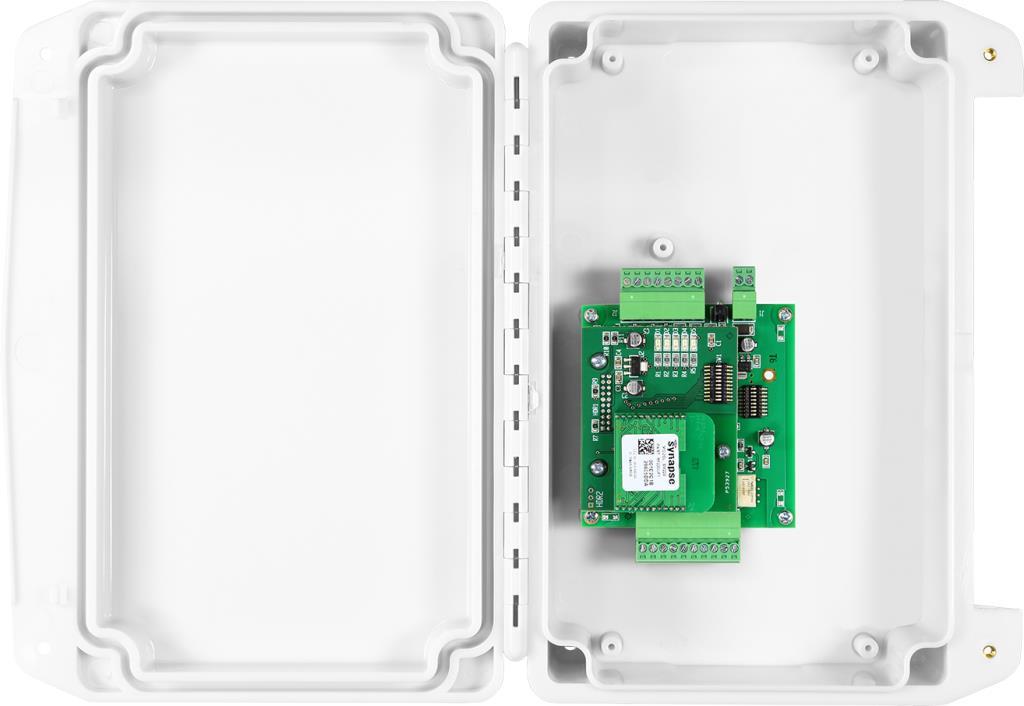

Front Panel Image 300 x 250 full front panel image |
 |

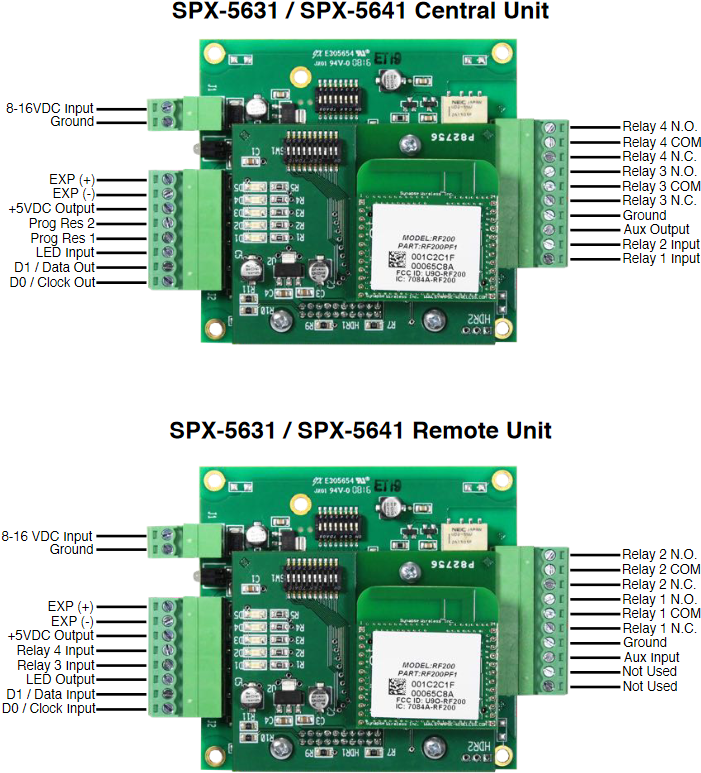

Back Panel Image 300 x 250 full back panel image |
 |
Spec Sheet |
|
|
User Manual |
|
|
User Manual |
