WolfVision Accessories Model VZ-8LIGHT³ Desktop Visualizer

Overview Specifications I/Os Images and Documentation

Manufacturer:	WolfVision
Model:	VZ-8LIGHT³
Category:	Video Conferencing
Subcategory:	Accessories
Status:	Current
Part Number:
Long Description:	The VZ-8light Visual Presenter has an outstanding picture quality due to a perfect mixture of high end components. It has a high resolution CCD camera with 1280 x 960 pixels and 30 frames per second, this is native SXGA resolution with an aspect ratio of 4:3 and a native 720p HD High Definition with 1280 x 720 pixels at a widescreen aspect ratio of 16:9. The continuously working autofocus recognizes every object quickly and precisely. As a result, the presenter never needs to worry about focusing. The high speed of the autofocus is due to a special WolfVision software, which is analyzing 30 frames per second, while the light system is optimized for the working surface and there is no a need for any light adjustments. Furthermore, front/back recording adds more flexibility and due to the clever design of the Visualizers housing, the whole working surface is completely reflection free. Additionally, the special crystalline white working surface reproduces transparencies perfectly. The VZ-8light produces a very strong and stable picture, which is very important when a Visualizer is used as a document camera for videoconferencing systems. With the Text Enhancer function, the outstanding contrast of the picture is improved even more with colors only slightly darker than before. Dark text on a bright background can sometimes be easier to read if the Visualizer is switched to Negative or Negative/Blue. Additionally, external controlling is enabled by Serial RS232 and USB. The popular VZ-8light Visualizer have become a worldwide standard in a large number of universities, schools and enterprises in recent years.
Features:
100% Reflection free Working Surface 220 Tilt Range of Camera 24x Zoom (12x Optical and 2x Digital) Allows External Controlling Serial RS232 and USB Camera Head, Zoom Wheel and Easy Handling Concepts Can record in front or at the back of the unit Computer Input (Internal/External Switch) Feature a Table Lock Bolt and a Kensington Lock Firmware Updates through RS232 or USB Image Freeze Function Native SXGA and 720p High Definition Resolution No Focus and Light Adjustments Necessary Offers a 3-year warranty Offers a wide range of connectors and DVI-ports Optimized for Video Conferencing Special Surface for Transparencies Text Enhancer and Negative/Negative-Blue Effects The Unique Folding System allows it to be set/packed up in seconds Twain, Video Capture and AVI playback capability USB 2.0 Port Weighs 11.0 pounds
Product URL:	http://www.wolfvision.com/visualizer/index.php/en/desktop-visualizer/vz-8plus3

MVP Partner| Data Subscription

Height:	24.25 in
Width:	12.25 in
Depth:	16.12 in
Weight:	11.00 lbs
BTU:	0.00
Volts:	240 V AC Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	0.50

Inputs

Terminal	Label	Signal

DCPLUG	POWER	12VDC
DSUB15	PC	VGA
USB	USB B	DATA
DB9	RS232	CTRL

Outputs

Terminal	Label	Signal

DVI	DVI	DVID
DSUB15	PC	VGA
DCPLUG	POWER	12VDC

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

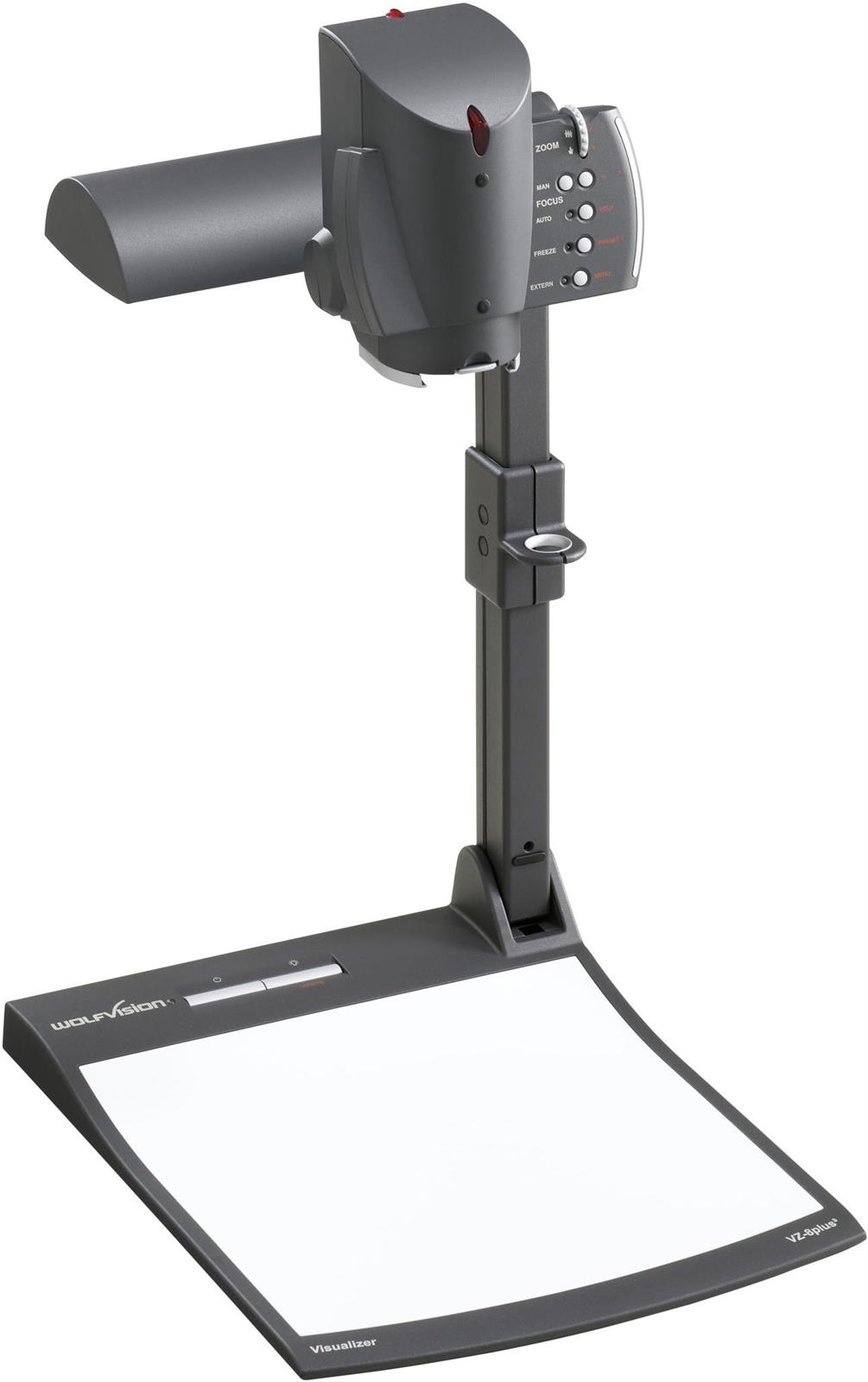

	Front Panel Image 300 x 250 full front panel image

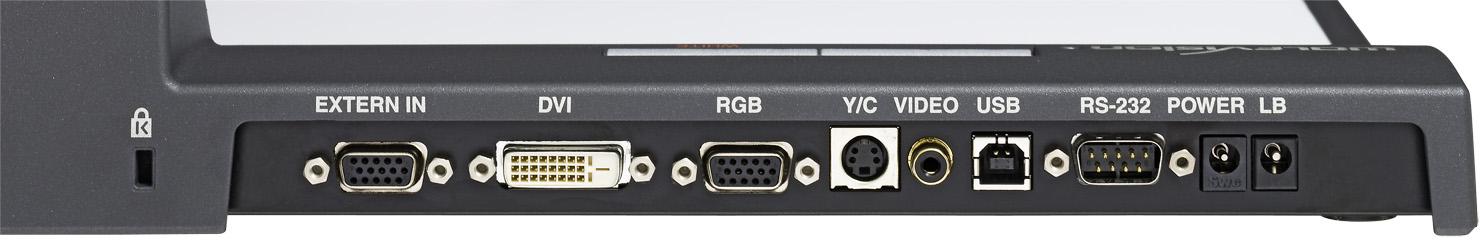

	Back Panel Image 300 x 250 full back panel image
	Spec Sheet
	User Manual
