HDfury Signal Converters Model HDFURY X4 Converter

Overview Specifications I/Os Images and Documentation

Manufacturer:	HDfury
Model:	HDFURY X4
Category:	Signal Distribution
Subcategory:	Signal Converters
Status:	Current
Part Number:
Long Description:	HDfury X4 offers all the features and controls you need to solve the seemingly simple matter of getting your digital AV sources to display correctly, easily and affordably on either an Analog or Digital display. Whatever the HDMI source, HDfury X4 is capable of scaling it up or down, deinterlacing it, and adjusting its aspect ratio to match the native resolution of your video display or computer monitor. Any display resolution up to 19201200 can be supported (or 1080p72). If the input is 50Hz or 60Hz, you would be able to manually select either one on the output, perfect for customers who have USA TVs in Europe or other way around(PAL/NTSC) The HDfury X4 Scaler is ideal for adding digital connectivity and scaling to existing Analog or Digital AV systems.
Features:
Improved output cable driver for driving long cable runs (40-50) Software/Firmware upgradeable through USB Special software available for Mits RPTV and others 1080i display. Display HDMI content on ANY HDMI/DVI-D/RGB/VGA/YUV TV, Monitor or Projector Always display any HDMI content at your display max resolution HDfuryX4 can output in both Digital and Analog Video/Audio simultaneously Double, Triple, Quadruple frame 1080p24 material up to 1080p96 Double Frame 720p50 and 720p60 into 720p100 and 720p120 Transcoder and Scan converter, Toggle 50/60Hz or PAL/NTSC at will. Any input can be up or down-scaled to a specified resolution up to 1080p96 for HDTV Any input can be up or down-scaled to a specified resolution up to 19201200 for PC mode 7.1 Dolby True HD & DTS Master Audio 3 Aspect Ratio Modes Custom porch settings, resolution and refresh rate adjustment through Windows Software. Dynamically create EDID based on Sink EDID parameters Customisation settings available through DIP SWITCH and buttons Perfectly and automatically center image in all standard NTSC/PAL component modes Manually adjust horizontal screen position in all NTSC/PAL RGBHV modes Performs Colour Depth Upscaling in all modes (ON/OFF user selectable) Horizontal and Vertical Sync Polarity Inverter included Automatic SD/HD color-space selection Accept third party accessories on its output
Product URL:	https://www.hdfury.com/product/hdfury-x4/

MVP Partner| Data Subscription

Height:	0.00 in
Width:	0.00 in
Depth:	0.00 in
Weight:	0.00 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	0.25

Inputs

Terminal	Label	Signal

HDMI	HDMI	DVID
USB	POWER	5VDC

Outputs

Terminal	Label	Signal

HDMI	HDMI 1	DVID
HDMI	HDMI 2	DVID
DSUB15	COMPONENT/RGB	YPRPB/RGBHV
3.5MM	ANALOG	AUD-RL

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

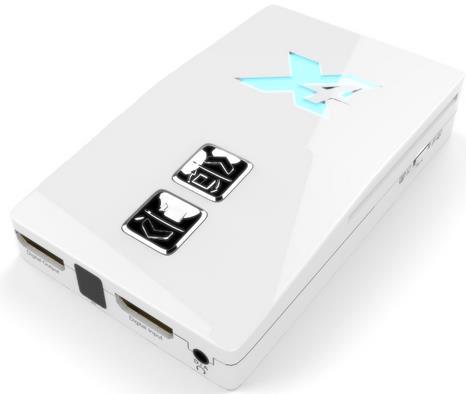

	Front Panel Image 300 x 250 full front panel image
	User Manual
