RMG Networks Players Model SDA-1010 Media player

Overview Specifications I/Os Images and Documentation

Manufacturer:	RMG Networks
Model:	SDA-1010
Category:	Digital Signage
Subcategory:	Players
Status:	Current
Part Number:
Long Description:	The SDA-1010 is the perfect option for applications requiring a small form-factor media player with the power to run visually complex, data-driven communications, such as interactive touchscreens, or co-located with large digital displays. Even with its smaller footprint, the SDA-1010 provides the high-definition, high-impact content you need for your visual communications network. The compact SDA-1010 measures approximately 6.5 inches wide, 4.2 inches deep and 1.6 inches tall. The integrated power supply makes the 1010 easy to install in tight spaces, and its low profile makes it less conspicuous than a traditional media player. With its whisper-quiet 28 dB rating, all you’ll hear is the content you provide. Plus, it offers the features you expect from a world-class enterprise media player.
Features:
Integrated wireless 802.11 a,b,g,n networking Solid-state drives Native output of mini display port with options for HDMI, DVI, and VGA Windows Embedded Standard 7 operating system Audio over HDMI input Supports 480p, 720p and 1080p output resolution (playback quality may be affected by other display elements) DB9 serial port connectors for programmable RS232 screen controls
Product URL:

MVP Partner| Data Subscription

Height:	1.63 in
Width:	6.50 in
Depth:	4.20 in
Weight:	2.00 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	1.00

Inputs

Terminal	Label	Signal

AC PLUG	POWER	240VAC
USB	USB 1	DATA
USB	USB 2	DATA
3.5MM	MINI	AUD-RL
F	ANTENNA 1	RF
F	ANTENNA 2	RF
HDMI	HDMI	DVID
DB9	RS-232	CTRL

Outputs

Terminal	Label	Signal

3.5MM	HEADPHONE	AUD-RL
MINI DISPLAYPORT	MINI DISPLAYPORT	DVID

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

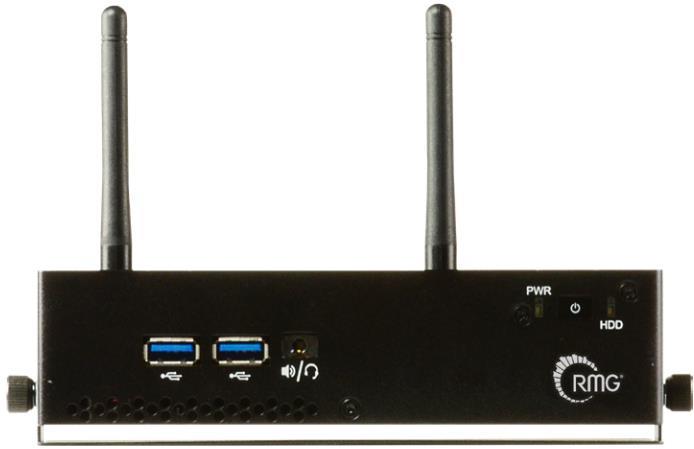

	Front Panel Image 300 x 250 full front panel image

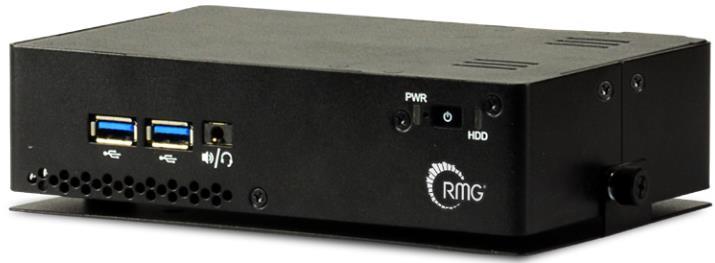

	Perspective View Image 300 x 250 full back perspective view image
