Infinias, Inc. Packages Model S-EIDC-KIT-DEMO Access control demo kit include S-EIDC32 door controller, S-SMB-5075 surface mount box, A-CRS-6005-GRY reader and other

Overview Specifications I/Os Images and Documentation

Manufacturer:	Infinias, Inc.
Model:	S-EIDC-KIT-DEMO
Category:	Access Control
Subcategory:	Packages
Status:	Current
Part Number:
Long Description:	This all-in-one infinias access control demo kit features everything needed to demonstrate a working door simulation. The demo kit includes an infinias PoE-enabled eIDC 32 door controller and an HID 6005 Prox Point Plus mini mullion reader that are mounted to a surface mount box. LEDs and buttons are wired to the eIDC 32 door controller to simulate a working door and indicate various access control events. The demo kit also includes infinias 26-bit Wiegand access control cards and a short arm security hex key for easy installation. The demo kit features Intelli-M Access software that enables you to demonstrate a variety of infinias IP-based access control tasks and features including managing, viewing and reporting activity through the eIDC 32 door controller which connects to the network. Demo Kit include: 1 infinias eIDC 32 door controller 1 Surface mount box 1 HID 6005 ProxPoint Plus mini mullion card reader 2 infinias access control cards 1 Intelli-M Access software 1 Short arm security hex key
Features:
Portable, easy to set up Edge-based installation at the door Demonstrates the features and capabilities of an infinias IP-based access control solution Demo kit includes an infinias PoE-enabled eIDC door controller and HID Prox Point Plus mini mullion card reader mounted to a surface mount box LEDs and buttons are wired to the eIDC door controller to simulate a working door Intelli-M Access Software enables managing, viewing and reporting activity Demo kit also includes: Prox card samples from infinias and a short arm security hex key
Product URL:	https://www.3xlogic.com/products/access-control/infinias-access-control-demo-kit

MVP Partner| Data Subscription

Height:	0.00 in
Width:	0.00 in
Depth:	0.00 in
Weight:	0.00 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	1.00

Inputs

Terminal	Label	Signal

RJ45

ETHERNET

DATA

Outputs

No Outputs

	Front Panel Thumbnail 50 x 50 front panel thumbnail image
	Front Panel Image 300 x 250 full front panel image

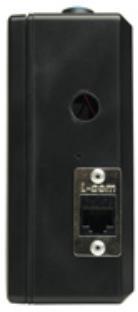

	Back Panel Image 300 x 250 full back panel image
	Spec Sheet
