Turbosound Accessories Model PERFORMER TPX153 3 Way dual 15" full range loudspeaker for portable PA application

Overview Specifications I/Os Images and Documentation

Manufacturer:	Turbosound
Model:	PERFORMER TPX153
Category:	Speakers
Subcategory:	Accessories
Status:	Current
Part Number:
Long Description:	The 3-way full range TPX153 is a passive dual 15" 2,000 Watt loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement, including FOH, side and drum fi ll applications. Engineered as a standalone 3-way system not requiring any external equalization or fi ltering, the TPX153 achieves optimal performance when paired with a subwoofer and TURBOSOUND loudspeaker management systems.
Features:
3 way full range loudspeaker for portable PA applications 500 Watts continuous, 2,000 Watts peak power High excursion dual 15" low frequency drivers with low mass coil for improved transient response Aluminium dome 1" compression driver with extended high frequency reproduction Low distortion waveguide provides 70 H x 50 V dispersion Hard wearing carpet covered 18mm (3/4") wood construction Rugged powder coated perforated steel mesh grille Durable handles for easy lifting and carrying Neutrik speakON* NL4 connectors for reliable long life operation 10-Year Warranty Program* Designed and engineered in the U.K.
Product URL:	http://www.musictri.be/Categories/Turbosound/PERFORMER/TPX153/p/P0B5T

MVP Partner| Data Subscription

Height:	18.11 in
Width:	42.91 in
Depth:	16.93 in
Weight:	84.90 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	0.25

Inputs

Terminal	Label	Signal

SPEAKON

SPEAKER

SPK

Outputs

Terminal	Label	Signal

SPEAKON

LOOP THRU

SPK

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

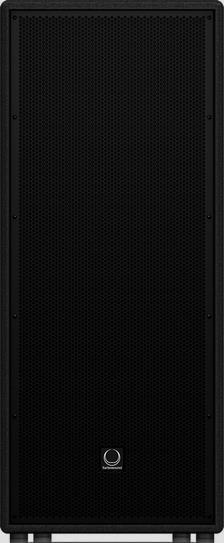

	Front Panel Image 300 x 250 full front panel image

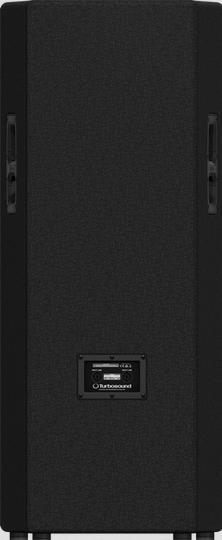

	Back Panel Image 300 x 250 full back panel image

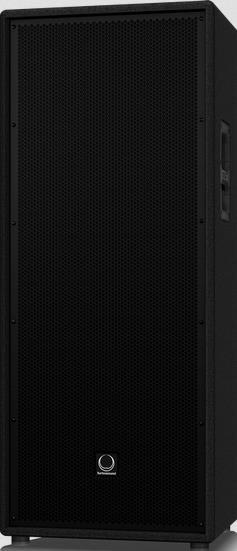

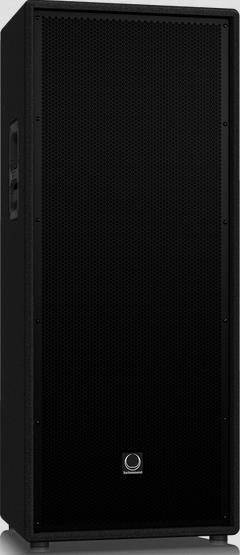

	Perspective View Image 300 x 250 full back perspective view image
	Perspective View Image 300 x 250 full back perspective view image
	Spec Sheet
	User Manual
