Procella Audio DSP Model DA-2800DSP 2800 Watt Four-Channel Power Amplifier - DSP Version

Overview Specifications I/Os Images and Documentation

Manufacturer:	Procella Audio
Model:	DA-2800DSP
Category:	Processors
Subcategory:	DSP
Status:	Discontinued
Part Number:	DA-2800DSP
Long Description:	Great speakers need a great amplifier, and that is the reason we created the DA2800-DSP. It further increases the audio quality that Procella loudspeakers and subwoofers are famous for, whether you are building a top class home cinemas, studio or Premier class commercial cinema. The DA2800-DSP is a 2,800 Watt four-channel power amplifier that delivers 700W x 4 into 4 ohms and 360W x 4 into 8 ohms. The amplifiers class-D design is highly efficient, producing enormous output in a chassis that is only 1 RU high. The amplifier has onboard DSP with factory programmed presets that provide active crossovers and precise EQ for Procellas full-range speakers and subwoofers. The factory presets cover the majority of system configurations, and for unique system requirements, custom DSP programming is available on an advance order basis. With utterly transparent sound quality and huge power reserves for tremendous dynamic range, the DA2800-DSP is truly the ultimate amplifier for Procella speakers and subwoofers!
Features:
360W x 4 channels at 8 ohms 700W x 4 channels at 4 ohms Bridgeable to 1,400W x 2 channels at 8 ohms Two versions: DA-2800 amplifier only DA-2800 DSP with DSP and Ethernet DSP Version: selectable EQ presets optimized for P860, P815, P18, P15, P10, P10Si DSP Version: preset crossovers for outboard biamplification of the P860, P815 and P610 Fully protected against DC, thermal overload and short circuits Four year warranty Neutrik XLR balanced inputs and Speakon speaker wire output connectors Recessed front panel level controls and LED indicators CE and CSA certified High efficiency Green Audio Power design Switchable 115V/230V power supply DSP Version: Ethernet control interface Outboard amp option for P815, P18, P15, P10
Product URL:	https://procella.audio/product/da2800-dsp/

MVP Partner| Data Subscription

Height:	1.75 in
Width:	19.00 in
Depth:	14.10 in
Weight:	16.30 lbs
BTU:	0.00
Volts:	115-230 VAC Volts
Rack Mounted:	Yes
Rack Units:	1.0
Phase:	Finish
Labor Hours:	1.00

Inputs

Terminal	Label	Signal

ACPLUG	POWER	230VAC
RJ45	ETHERNET	DATA
XLR	CHANNEL 1	AUDIO
XLR	CHANNEL 2	AUDIO
XLR	CHANNEL 3	AUDIO
XLR	CHANNEL 4	AUDIO

Outputs

Terminal	Label	Signal

SPEAKON	CHANNEL 1	AUDIO
SPEAKON	CHANNEL 2	AUDIO
SPEAKON	CHANNEL 3	AUDIO
SPEAKON	CHANNEL 4	AUDIO

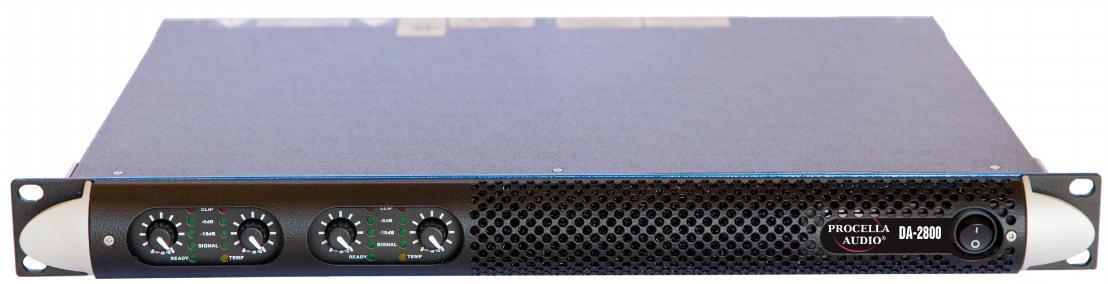

	Front Panel Thumbnail 50 x 50 front panel thumbnail image
	Front Panel Image 300 x 250 full front panel image
	Back Panel Image 300 x 250 full back panel image
	Spec Sheet
	User Manual
