DSX Accessories Model DSX-LAN
Auto-sensing 10/100BaseT communication interface for DSX controller
Overview
Specifications
I/Os
Images and Documentation
| Manufacturer: | DSX |
| Model: | DSX-LAN |
| Category: | Networking |
| Subcategory: | Accessories |
| Status: | Current |
| Part Number: | |
| Long Description: | The DSX-LAN module is a Auto-sensing 10/100BaseT communications interface for DSX Controllers. It will accept RS-232 or RS-485 from the controllers and connect to a 10 or 100Mbit LAN. The workhorse is simple to install and program. There is a DSX-LAN(M) version that will allow the connection of a dial-up modem for modem backup to the LAN communications. |
| Features: | |
|
|
| Product URL: | http://www.dsxinc.com/designguide2/hardware.htm |
| Height: | 3.50 in |
| Width: | 5.50 in |
| Depth: | 1.00 in |
| Weight: | 0.75 lbs |
| BTU: | 0.00 |
| Volts: | Volts |
| Rack Mounted: | No |
| Rack Units: | 0.0 |
| Phase: | Finish |
| Labor Hours: | 0.25 |
| Inputs | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Outputs | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
|
|
Front Panel Thumbnail 50 x 50 front panel thumbnail image |
 |

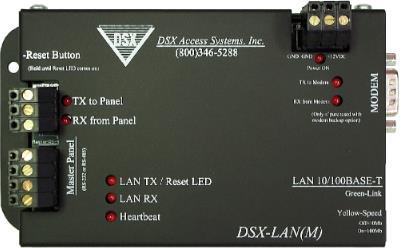

Front Panel Image 300 x 250 full front panel image |
 |
Spec Sheet |
