J-Tech Digital Signal Converters Model JTDAT5CH Digital premium quality HDMI to HDMI plus audio (SPDIF + RCA Stereo) extractor converter

Overview Specifications I/Os Images and Documentation

Manufacturer:	J-Tech Digital
Model:	JTDAT5CH
Category:	Signal Distribution
Subcategory:	Signal Converters
Status:	Current
Part Number:
Long Description:	This device extracts the digital audio signal from the HDMI input and converts it to 2 channel analog stereo output or 5.1 channel Audio outputs.
Features:
Extracts the digital audio signal from the HDMI input and converts it to 2 channel analog stereo output or 5.1 channel audio output Supports the highest video resolution up to 1080p Supports 225MHz/2.25Gbps per channel bandwidth Supports 12bit per channel (36bit all channel) deep color Supports HDCP Supports uncompressed audio such as LPCM and compressed audio such as DTS Digital or Dolby Digital Support 3D video (To get 3D, all units connected to the splitter outputs must support 3D) Supports Apple TV, Roku, Amazon Fire TV, and various Blu-ray players and satellite receivers
Product URL:	https://jtechdigital.com/product/jtech-audio-extractor-1080p-jtdat5ch/

MVP Partner| Data Subscription

Height:	1.00 in
Width:	3.00 in
Depth:	0.00 in
Weight:	0.31 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	0.25

Inputs

Terminal	Label	Signal

DCPLUG	POWER	5VDC
HDMI	HDMI	DVID

Outputs

Terminal	Label	Signal

HDMI	HDMI	DVID
TOSLINK	OPTICAL	SPDIF
RCA	AUDIO	AUD-RL

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

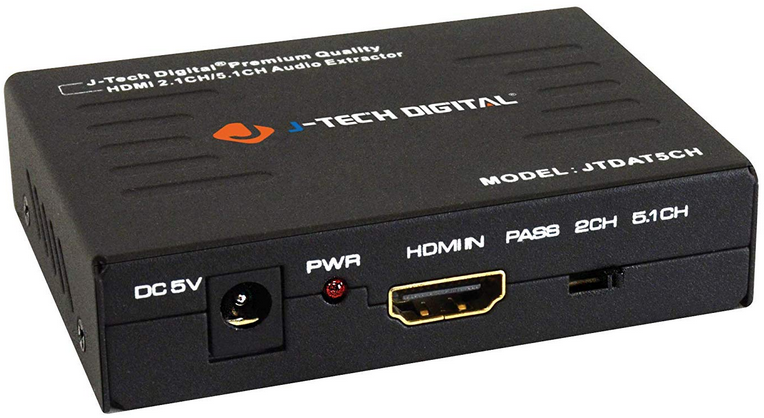

	Front Panel Image 300 x 250 full front panel image

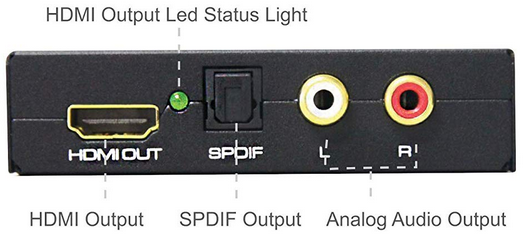

	Back Panel Image 300 x 250 full back panel image
	User Manual
