Wisdom Audio LCR Model C20MX2, C38MX1 Superbar, (2) C20M As L&R and (1) C38M As Center In Charcoal Finish with Black Grille

Overview Specifications I/Os Images and Documentation

Manufacturer:	Wisdom Audio
Model:	C20MX2, C38MX1
Category:	Speakers
Subcategory:	LCR
Status:	Current
Part Number:
Long Description:	Sage Series C20m x 2, C38m x1 Superbar is available in custom lengths of up to almost any length imaginable, and custom colors if the standard finish is not suitable for your environment and decor. Sage Series C20m x 2. C38m x1 Superbar is available in custom lengths of up to almost any length imaginable, and custom colors if the standard finish is not suitable for your environment and decor. Our Superbars are specifically designed to avoid the compromises inherent in conventional speaker designs. There are no passive crossover components inside the speaker. Instead, there are direct connections from the amplifiers to their respective High-Pass and Low-Pass drivers and an external active crossover is used, such as the ones inside of our Wisdom SA-DSP (Digital Signal Processing) Amplifiers. It is truly a system design, and not merely a collection of loudspeaker drivers in a box.
Features:
On-Wall or Freestanding Highly Detailed & Dynamic (2) Planar Magnetic Drivers Covers 5 Octaves of Clarity Light Weight Film PEEK FAST acceleration Available in 2/3 CH configurations Available as Free-Standing On-Wall / Free-standing Custom Colors Available Custom Length Available Anodized trim bezels Full Range Loudspeaker (4) High operating woofers Outboard Active Crossover DSP Required 4-CHs of Amplification Required
Product URL:	https://www.wisdomaudio.com/product/sage-c20m-x2-c38m-x1-lcr-superbar/

MVP Partner| Data Subscription

Height:	7.20 in
Width:	0.00 in
Depth:	7.34 in
Weight:	95.00 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	0.50

Inputs

Terminal	Label	Signal

5-WAY	LEFT +/-	SPK-L
5-WAY	CENTER +/-	SPK-C
5-WAY	RIGHT +/-	SPK-R

Outputs

No Outputs

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

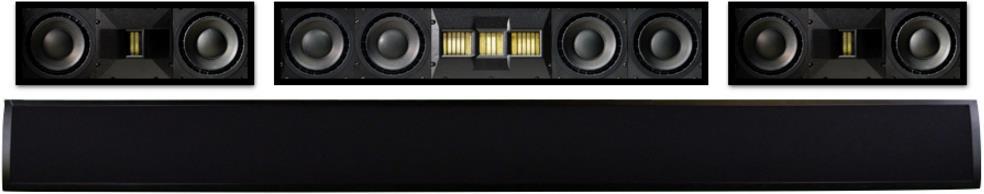

	Front Panel Image 300 x 250 full front panel image
	Back Panel Image 300 x 250 full back panel image

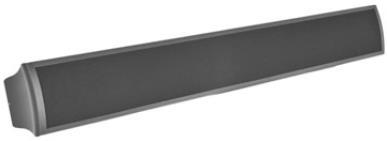

	Perspective View Image 300 x 250 full back perspective view image
	Spec Sheet
