Pakedge Packages Model BUN-RE-2+W7+S8MPDP+P8-US RE-2 Power user small network system RE-2 (Router), W7 (Wireless Access Point), S8Mpdp (8 Port Gigabit Managed Switch), P8 (Power Distribution Unit), PI-04 (Gigabit Power Over Ethernet Injector)

Overview Specifications I/Os Images and Documentation

Manufacturer:	Pakedge
Model:	BUN-RE-2+W7+S8MPDP+P8-US
Category:	Networking
Subcategory:	Packages
Status:	Discontinued
Part Number:
Long Description:	Complete Pakedge network system
Features:	There are no features associated to this product.
Product URL:

MVP Partner| Data Subscription

Height:	0.00 in
Width:	0.00 in
Depth:	0.00 in
Weight:	0.00 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	1.00

Inputs

Terminal	Label	Signal

ACPLUG	POWER 1	240VAC
USB	USB 1	DATA
USB	USB 2	DATA
RJ45	LAN 1	DATA
RJ45	LAN 2	DATA
RJ45	LAN 3	DATA
RJ45	LAN/WAN	DATA
DCPLUG	POWER 2	12VDC
RJ45	LAN 4	DATA
ACPLUG	POWER 3	240VAC
USB	USB 3	DATA
RJ45	ETHERNET 1	DATA
RJ11	TEMPERATURE SENSOR	DATA
RJ45	RS-232	DATA
DCPLUG	POWER 4	12VDC
RJ45	LAN 4	DATA
RJ45	LAN 5	DATA
RJ45	LAN 6	DATA
RJ45	LAN 7	DATA
RJ45	LAN 8	DATA
RJ45	LAN 9	DATA
RJ45	LAN 10	DATA
RJ45	LAN 11	DATA
SFP	GIGABIT	DATA
RJ45	CONSOLE	DATA
RJ45	ETHERNET 2	DATA
ACPLUG	POWER 5	240VAC

Outputs

Terminal	Label	Signal

RJ45	WAN	DATA
NEMA	OUTLET 1	220VAC
NEMA	OUTLET 2	220VAC
NEMA	OUTLET 3	220VAC
NEMA	OUTLET 4	220VAC
NEMA	OUTLET 5	220VAC
NEMA	OUTLET 6	220VAC
NEMA	OUTLET 7	220VAC
NEMA	OUTLET 8	220VAC
RJ45	LAN 1	DATA
RJ45	LAN 2	DATA
RJ45	LAN 3	DATA
RJ45	LAN 4	DATA
RJ45	LAN 5	DATA
RJ45	LAN 6	DATA
RJ45	LAN 7	DATA
RJ45	LAN 8	DATA
SFP	GIGABIT	DATA
RJ45	ETHERNET	POWER/DATA

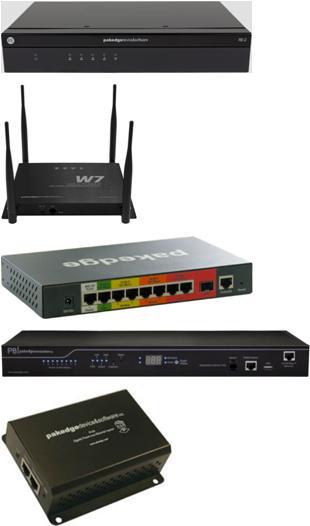

	Front Panel Thumbnail 50 x 50 front panel thumbnail image
	Front Panel Image 300 x 250 full front panel image

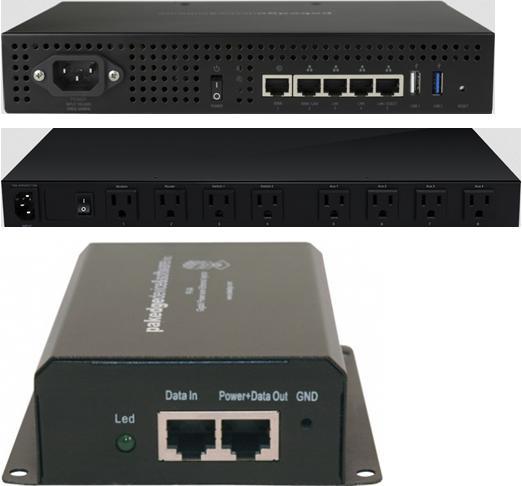

	Back Panel Image 300 x 250 full back panel image
