Brivo Systems Control Panels & Controllers Model B-ACS6008-E Control Panel (includes Four-board Chassis, Main Board, Power Supply Board, Battery And Transformer)

Overview Specifications I/Os Images and Documentation

Manufacturer:	Brivo Systems
Model:	B-ACS6008-E
Category:	Access Control
Subcategory:	Control Panels & Controllers
Status:	Current
Part Number:
Long Description:	Brivo control panels are the supporting components of your Brivo access control platform. The ACS6000 control panels are provided in two models. The ACS6000-E is used with Brivo Access and the ACS6000-A is used with the Brivo Onsite Server. The expansion boards are common to all control panel types. ACS6000 components are backward compatible with our ACS5000 line of control panels.
Features:
IP based access control and alarms Supports up to 30 card readers per control panel Supports Brivo Onair Pass credentials (ACS6000-E only) Host communication via ethernet and/or Wi-Fi Encrypted storage and communications Host authentication via digital certificates Modular growth via expansion boards Supports Wiegand and OSDP compatible readers Supports select wireless door locks
Product URL:	https://www.brivo.com/products/control-panels/

MVP Partner| Data Subscription

Height:	17.28 in
Width:	15.63 in
Depth:	3.50 in
Weight:	0.00 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	2.00

Inputs

Terminal	Label	Signal

DCPLUG	POWER 1	12VDC
TERM BLK	PAR DET	CTRL
TERM BLK	GND 1	GND
TERM BLK	POWER 2	12VDC
RJ45	ETHERNET 1	DATA
RJ45	ETHERNET 2	DATA
TERM BLK	CAN BUS ORANGE/WHITE	CTRL
TERM BLK	CAN BUS ORANGE	CTRL
TERM BLK	CAN BUS BLUE	CTRL
TERM BLK	CAN BUS GREEN/WHITE	CTRL
TERM BLK	CAN BUS GREEN	CTRL
TERM BLK	REX/COM/CONT 1	CTRL
TERM BLK	AUX IN1/COM/IN2 1	CTRL
TERM BLK	RXD + 1	CTRL
TERM BLK	RXD - 1	CTRL
TERM BLK	GND 1	GND
TERM BLK	POWER 1	12VDC
TERM BLK	REX/COM/CONT 2	CTRL
TERM BLK	AUX IN1/COM/IN2 2	CTRL
TERM BLK	RXD + 2	CTRL
TERM BLK	RXD - 2	CTRL
TERM BLK	GND 2	GND
TERM BLK	POWER 2	12VDC

Outputs

Terminal	Label	Signal

TERM BLK	DOOR LOCK RELAY NO/COM/NC	CTRL
TERM BLK	AUX RELAY NO/COM/NC 1	CTRL
TERM BLK	AUX RELAY NO/COM/NC 2	CTRL
TERM BLK	BUZZ 1	CTRL
TERM BLK	TXD + 1	CTRL
TERM BLK	TXD - 1	CTRL
TERM BLK	BUZZ 2	CTRL
TERM BLK	TXD + 2	CTRL
TERM BLK	TXD - 2	CTRL

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

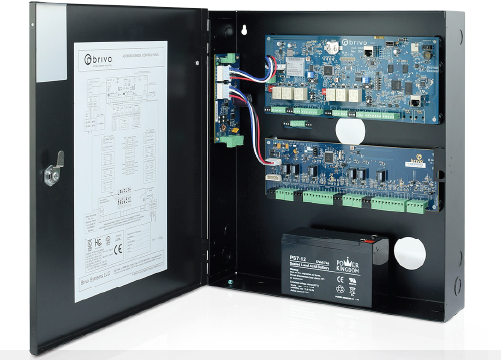

	Front Panel Image 300 x 250 full front panel image
