Fortinet Firewalls Model FORTIGATE-80C Network security platform

Overview Specifications I/Os Images and Documentation

Manufacturer:	Fortinet
Model:	FORTIGATE-80C
Category:	Networking
Subcategory:	Firewalls
Status:	Discontinued
Part Number:
Long Description:	FortiGate/FortiWiFi-80 Series consolidated security appliances deliver comprehensive enterprise-class protection for remote locations, branch offices, customer premise equipment (CPE) and retail networks. FortiGate/FortiWiFi-80 Series platforms feature an integrated set of essential security technologies in a single device to protect all of your applications and data. Simple per-device pricing, an integrated management console, and remote management capabilities significantly reduce costs associated with deployment and management.
Features:
Delivers up to 1.9 Gbps firewall throughput with 2 GbE and 7 10/100 interfaces Integrated, all-in-one network security delivers enterprise-class threat protection for remote locations and smaller networks Internal storage provides local archiving of data for policy compliance or WAN optimization PC Card slot supports broadband wireless such as EV-DO, W-CDMA, HSPA, and GPRS, which provides mobile network connectivity for remote deployments, or as a backup solution A single pane of glass management console makes it easy for you to deploy and manage. ExpressCard slot supporting 3G WAN connectivity and back-up modem (FortiGate-80CM, FortiWiFi-80CM)
Product URL:	http://www.fortinet.com/products/fortigate/80C.html

MVP Partner| Data Subscription

Height:	1.75 in
Width:	10.87 in
Depth:	0.00 in
Weight:	3.30 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	1.00

Inputs

Terminal	Label	Signal

DCPLUG	POWER	12VDC
SCREW	GND	GND
RJ45	CONSOLE	DATA
USB	USB 1	DATA
USB	USB 2	DATA
RJ45	ETHERNET 1	DATA
RJ45	ETHERNET 2	DATA
RJ45	ETHERNET 3	DATA
RJ45	ETHERNET 4	DATA
RJ45	ETHERNET 5	DATA
RJ45	ETHERNET 6	DATA
RJ45	DMZ	DATA
RJ45	WAN 1	DATA
RJ45	WAN 2	DATA

Outputs

Terminal	Label	Signal

RJ45	ETHERNET 1	DATA
RJ45	ETHERNET 2	DATA
RJ45	ETHERNET 3	DATA
RJ45	ETHERNET 4	DATA
RJ45	ETHERNET 5	DATA
RJ45	ETHERNET 6	DATA

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

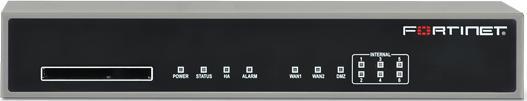

	Front Panel Image 300 x 250 full front panel image

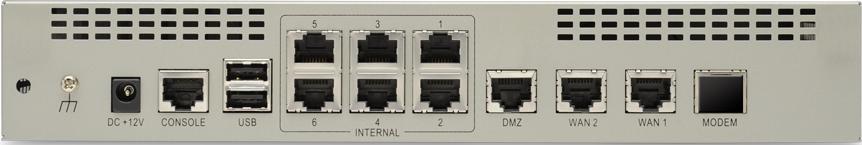

	Back Panel Image 300 x 250 full back panel image
	Spec Sheet
