TruAudio Multi-Channel Model AMP-440 4-Channel, 40W Per Channel Power Amplifier

Overview Specifications I/Os Images and Documentation

Manufacturer:	TruAudio
Model:	AMP-440
Category:	Amplifiers
Subcategory:	Multi-Channel
Status:	Discontinued
Part Number:	AMP-440
Long Description:	Perfect for small home theaters, multi-room installations, or as a compliment to our 12 channel power amplifiers. The TruAudio AMP-440 can power a soundbar or speakers while staying well hidden. It delivers outstanding sound quality and efficiency in a thin and compact form factor. Plus it has A/B switching with selectable priority and IR control. Flexible mounting options include in-wall mounting using our recessed can (AMP-CAN), on-wall using the supplied brackets, or rack mounting using our AMP-440-BRACKET.
Features:
Thin and compact 4 channel, dual zone amplifier Powerful 4 x 40W output, bridgeable to 2 x 80W Thoughtful combination of inputs and outputs includes A/B switching and volume tracking output One of the thinnest TV amps on the market Internal power supply and removable power cord for easy installations IR port with included receiver eye for hidden installations Master volume can be controlled at the chassis or with remote, (included) Mounting options include rack mount, on-wall, and in-wall (with optional recessed box) Class: D Certification: ETL, CE, C-Tick
Product URL:	https://www.truaudio.com/shop/product/amp-440/

MVP Partner| Data Subscription

Height:	18.00 in
Width:	12.00 in
Depth:	8.00 in
Weight:	9.00 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	Yes
Rack Units:	1.0
Phase:	Finish
Labor Hours:	1.50

Inputs

Terminal	Label	Signal

ACPLUG	POWER	230VAC
RCA	AUDIO 1	AUD-RL
RCA	AUDIO 2	AUD-RL
TOSLINK	OPTICAL	SPDIF
3.5MM	AUDIO	AUD
3.5MM	IR	CTRL
3.5MM	TRIGGER	12VDC
PHOENIX	AUDIO +/-	AUD-RL

Outputs

Terminal	Label	Signal

RCA	AUDIO	AUD-RL
PHOENIX	ZONE 1 +/-	SPK-RL
PHOENIX	ZONE 2 +/-	SPK-RL

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

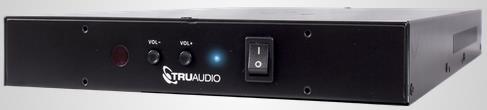

	Front Panel Image 300 x 250 full front panel image

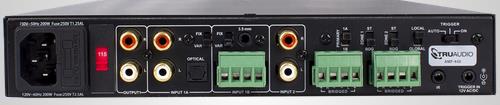

	Back Panel Image 300 x 250 full back panel image
	Spec Sheet
	User Manual
