Allen & Heath Consoles & Mixers Model AH-DLIVE-DLC1500 dLive C Class C1500 12 Fader Surface, 12" Touchscreen, 1 Option I/O Port, Rackmountable

Overview Specifications I/Os Images and Documentation

Manufacturer:	Allen & Heath
Model:	AH-DLIVE-DLC1500
Category:	Stage & Studio Equipment
Subcategory:	Consoles & Mixers
Status:	Discontinued
Part Number:
Long Description:	The C1500 is the first rack-mountable control Surface for the dLive MixRack. Packed in a tiny footprint are 12 faders over 6 layers, built-in audio I/O, an audio networking port, a 12 capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.
Features:
12 faders Fully assignable layout 72 fader strips Harmony UI integrates screen and wrap-around controls 12 capacitive touchscreen Gesture control pinch, swipe, drag n drop Dedicated multi-mode EQ view Configurable widget areas for Scenes, meters, FX and more 19 assignable SoftKeys Engineers Wedge and IEM fader strips Comprehensive multipoint metering Daylight visibility USB stereo recording and playback 6 XLR mic/line in, 6 XLR line out 1 digital st AES3 in, 1 digital st AES3 out Connection hub GigaACE gigabit link to MixRack DX link for I/O expansion I/O Port 128 ch 96 kHz 2x Network ports Wordclock BNC I/O Video output
Product URL:	http://www.allen-heath.com/ahproducts/c1500/

MVP Partner| Data Subscription

Height:	12.80 in
Width:	26.20 in
Depth:	19.00 in
Weight:	39.70 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	No
Rack Units:	0.0
Phase:	Finish
Labor Hours:	1.50

Inputs
No Inputs
Outputs
No Outputs

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

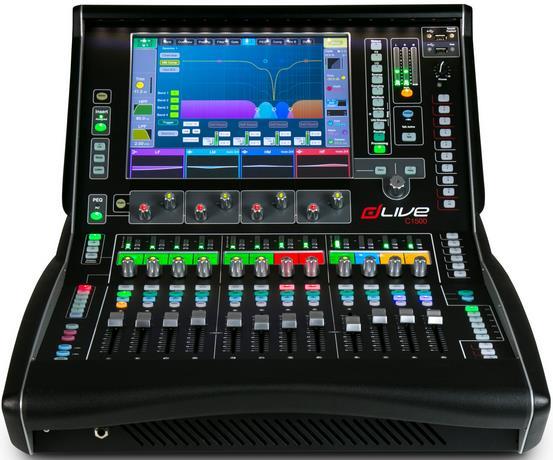

	Front Panel Image 300 x 250 full front panel image

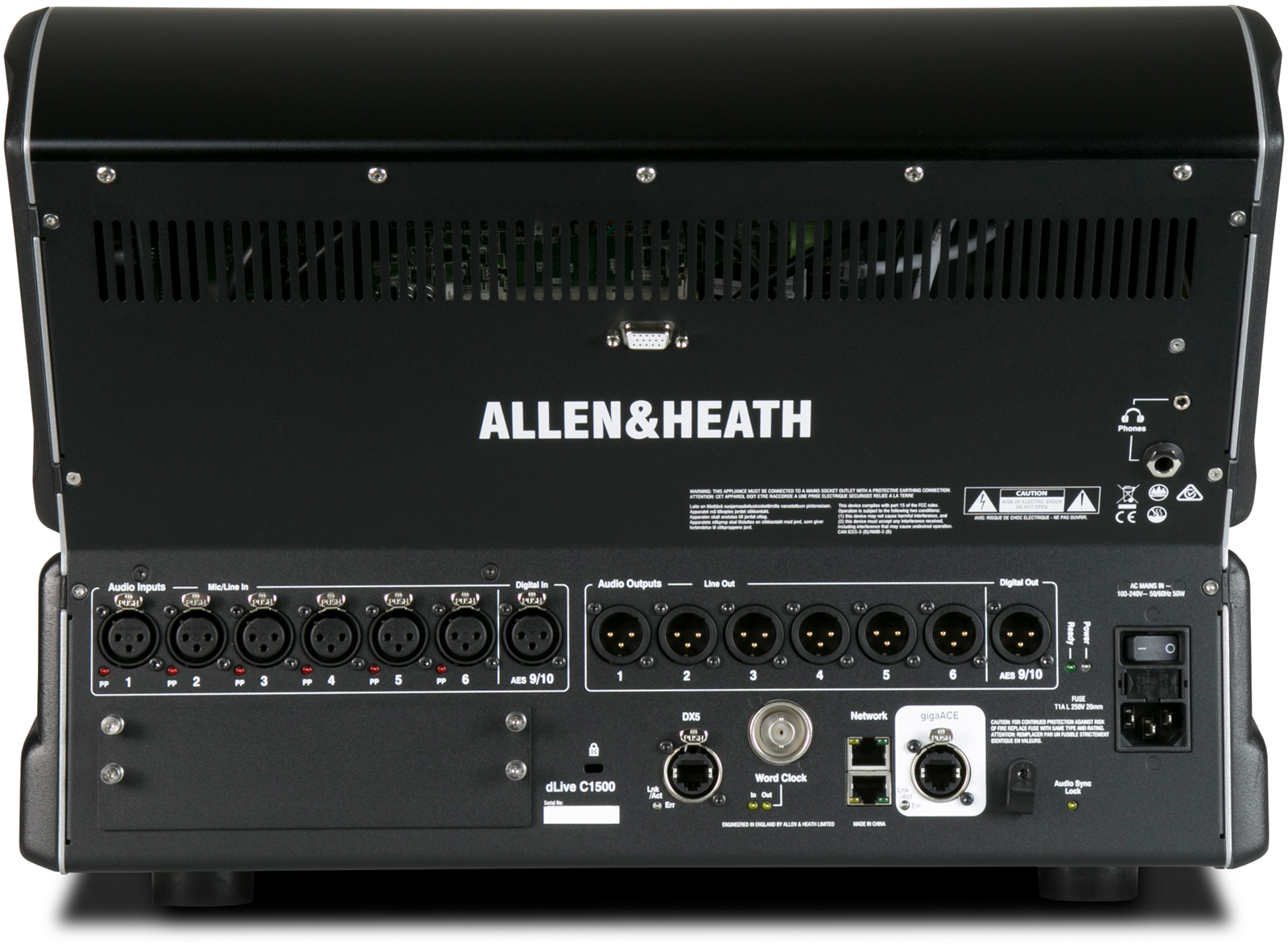

	Back Panel Image 300 x 250 full back panel image
	Spec Sheet
