Manufacturer:	AudioControl
Model:	ARCHITECT MODEL 1280 EQ
Category:	Amplifiers
Subcategory:	Multi-Channel
Status:	Discontinued
Part Number:
Long Description:	The Architect Model 1280 EQ 12-channel amplifier combines all of AudioControls award-winning features, like zone equalization, independent zone triggering, signal sensing and bussable inputs, in one compact chassis. Its robust power provides at least 65 watts per channel at 8 ohms when all 12 channels are driven. A flexible bussing system combined with local inputs and 12-volt triggers on each pair provides the versatility demanded by todays control systems. Five bands of equalization control per channel allows the user to optimize the sound in each zone for superior audio performance. AudioControls revolutionary Class H topology provides the cool-running, energy efficient performance required of a multi-channel amplifier. 5-bands of speaker equalization adjustment optimizes the performance of all speakers connected to its 12 channels. Manufactured in the USA, the Architect Model 1280 EQ carries AudioControls Bulletproof 5 Year Warranty, but is designed to last a lifetime.
Features:
12 Channels 65 Watts Per Channel, All Channels Driven Bridgeable for Increased Power Cool Running, Class H Topology 5-Band Speaker Equalization Compact 3U Rack Space LightDrive Anti-Clipping Protection Blue LED Less Than 1 Watt in Standby Rack Mounts Included
Product URL:	http://www.audiocontrol.com/home-audio/multi-room-amplifiers/architect-1280-eq/

MVP Partner| Data Subscription

Height:	5.25 in
Width:	17.00 in
Depth:	16.00 in
Weight:	51.00 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	Yes
Rack Units:	3.0
Phase:	Finish
Labor Hours:	1.50

Inputs

Terminal	Label	Signal

ACPLUG	POWER	240VAC
TERM BLK	TRIGGER	12VDC
RCA	BUSS 1	AUD-RL
RCA	BUSS 2	AUD-RL
1/8 MINI	TRIGGER 1	12VDC
1/8 MINI	TRIGGER 2	12VDC
1/8 MINI	TRIGGER 3	12VDC
1/8 MINI	TRIGGER 4	12VDC
1/8 MINI	TRIGGER 5	12VDC
1/8 MINI	TRIGGER 6	12VDC
RCA	UNBALANCED 1	AUD
RCA	UNBALANCED 2	AUD
RCA	UNBALANCED 3	AUD
RCA	UNBALANCED 4	AUD
RCA	UNBALANCED 5	AUD
RCA	UNBALANCED 6	AUD
RCA	UNBALANCED 7	AUD
RCA	UNBALANCED 8	AUD
RCA	UNBALANCED 9	AUD
RCA	UNBALANCED 10	AUD
RCA	UNBALANCED 11	AUD
RCA	UNBALANCED 12	AUD

Outputs

Terminal	Label	Signal

TERM BLK	TRIGGER	12VDC
TERM BLK	SPEAKER +/- 1	SPK-RL
TERM BLK	SPEAKER +/- 2	SPK-RL
TERM BLK	SPEAKER +/- 3	SPK-RL
TERM BLK	SPEAKER +/- 4	SPK-RL
TERM BLK	SPEAKER +/- 5	SPK-RL
TERM BLK	SPEAKER +/- 6	SPK-RL
TERM BLK	SPEAKER +/- 7	SPK-RL
TERM BLK	SPEAKER +/- 8	SPK-RL
TERM BLK	SPEAKER +/- 9	SPK-RL
TERM BLK	SPEAKER +/- 10	SPK-RL
TERM BLK	SPEAKER +/- 11	SPK-RL
TERM BLK	SPEAKER +/- 12	SPK-RL
TERM BLK	GND 1	GND
TERM BLK	GND 2	GND
TERM BLK	GND 3	GND
TERM BLK	GND 4	GND
TERM BLK	GND 5	GND
TERM BLK	GND 6	GND
TERM BLK	GND 7	GND
TERM BLK	GND 8	GND
TERM BLK	GND 9	GND
TERM BLK	GND 10	GND
TERM BLK	GND 11	GND
TERM BLK	GND 12	GND

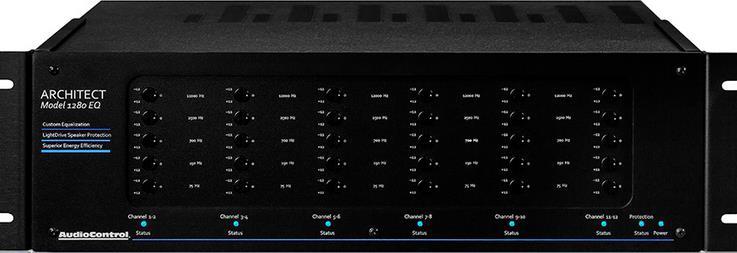

	Front Panel Thumbnail 50 x 50 front panel thumbnail image
	Front Panel Image 300 x 250 full front panel image

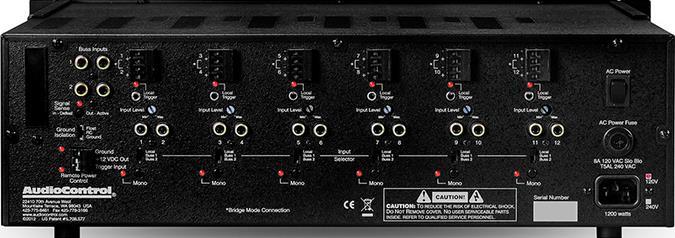

	Back Panel Image 300 x 250 full back panel image
