Sonic Foundry Recorders Model MEDIASITE RL RECORDER Recorder - Multimedia Presentation

Overview Specifications I/Os Images and Documentation

Manufacturer:	Sonic Foundry
Model:	MEDIASITE RL RECORDER
Category:	Video Conferencing
Subcategory:	Recorders
Status:	Discontinued
Part Number:	MSL-CSR-500
Long Description:	The Mediasite RL Recorder is ideal for lecture halls, smart classrooms, conference or training rooms and auditoriums. It integrates with familiar room control systems from Crestron, AMX and Mediatech to provide fully automated presentation recording. Plus, seamless integration with other existing audio/video and educational technology means you can confidently scale rich media webcasting throughout your academic or corporate enterprise. Combined with Mediasite EX Server, Mediasite Recorders form the most solid platform to record, stream, archive and manage your organizations knowledge and special events.
Features:
Anywhere playback Capture flexibility Easiest to use Error-free recording Hands-free operation Live and on-demand Pause/resume anytime Presentation editing Presentation playback Recorder Control Center
Product URL:

MVP Partner| Data Subscription

Height:	3.40 in
Width:	17.10 in
Depth:	12.80 in
Weight:	13.50 lbs
BTU:	0.00
Volts:	Volts
Rack Mounted:	Yes
Rack Units:	0.0
Phase:	Finish
Labor Hours:	1.50

Inputs

Terminal	Label	Signal

DB15	VGA	VGA
ACPLUG	120 VAC	AC
PS/2	MOUSE	DATA
DB25	PRINTER	DATA
1/8 IN	AUD IN	AUDIO
3.5 MM	MIC	AUDIO
1394	IEEE1394	1394
RJ45	ETHERNET	DATA
PS/2	KEYBOARD	DATA
USB	USB	DATA
DB9	SERIAL	RS232
BNC	VIDEO IN	VIDEO
SVID	SVIDEO	VIDEO
RCA	AUD L	AUDIO
RCA	AUD R	AUDIO
XLR	AUD L	AUDIO
XLR	AUD R	AUDIO

Outputs

Terminal	Label	Signal

1/8 IN	AUD OUT	AUDIO
DB15	MONITOR OUT	VGA

	Front Panel Thumbnail 50 x 50 front panel thumbnail image

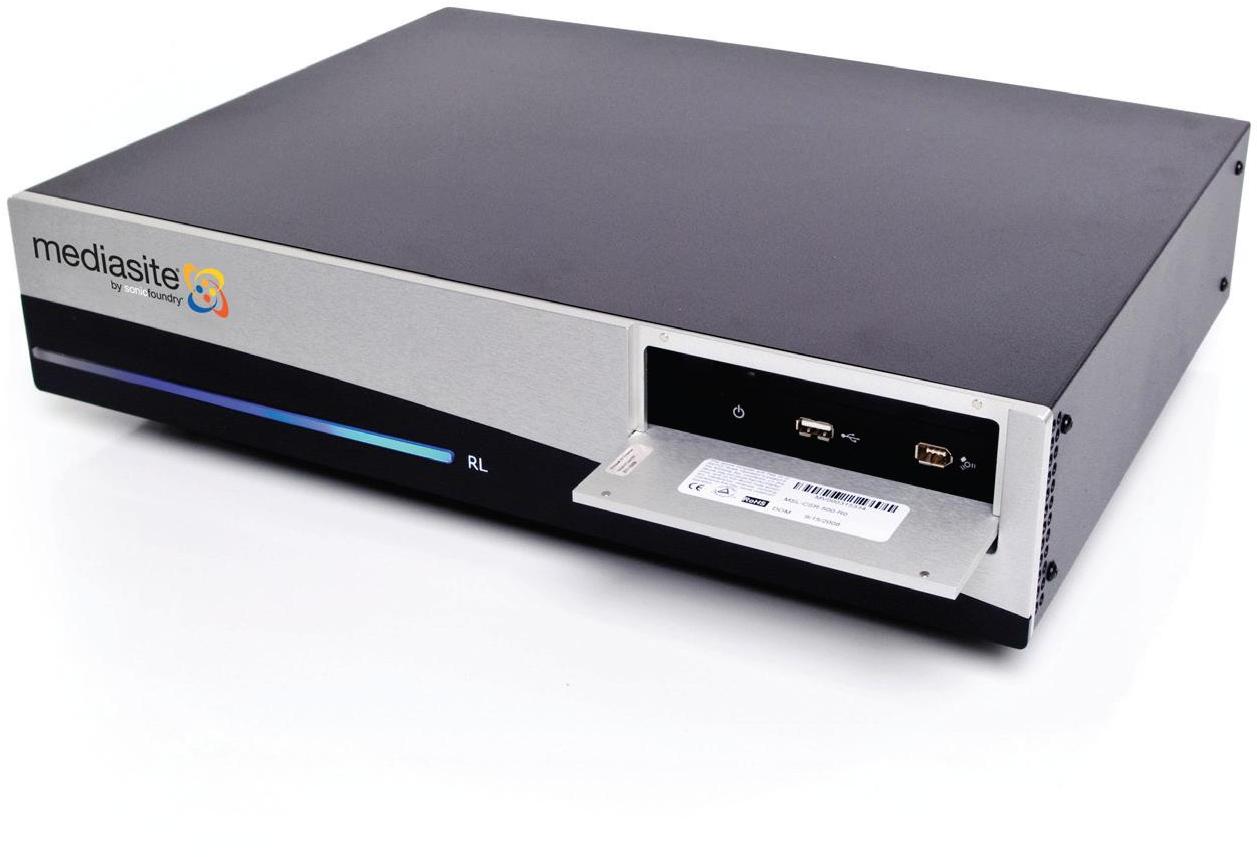

	Front Panel Image 300 x 250 full front panel image

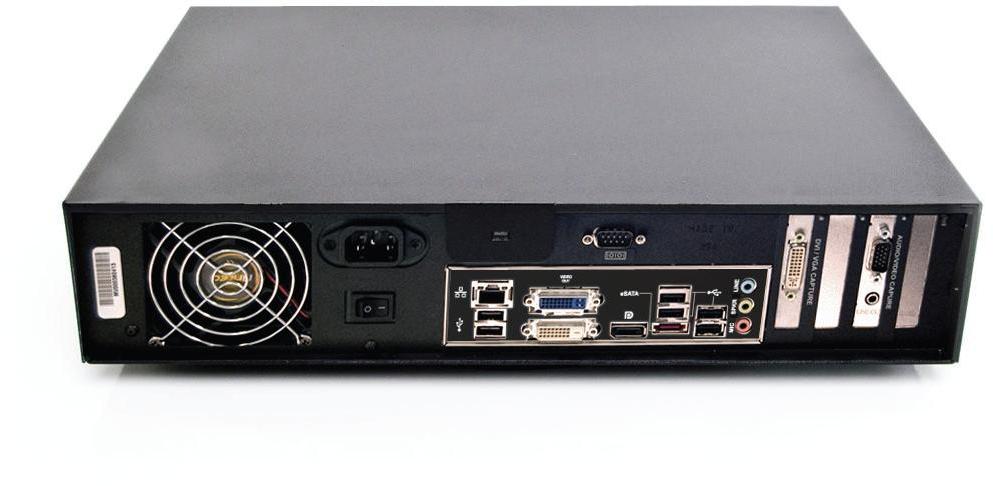

	Back Panel Image 300 x 250 full back panel image
