Opus Accessories Model FMM610 FM/AM Module Card for MCU610
Overview Specifications I/Os Images and Documentation
Manufacturer: Opus
Model: FMM610
Category: Signal Distribution
Subcategory: Accessories
Status: Current
Part Number: O10060K
Long Description: The MCU610 features three integral audio module expansion slots allowing any combination of the three sources to be specified into a system. Alongside the FM/AM included as standard and DAB/DAB+/FM modules, the most exciting development is the integrated audio streaming capability offered by the NRM610 network radio module. This provides a whole range of entertainment possibilities from playback of content stored on NAS drives or PCs / Macs, over 20,000 internet radio stations and access to cloud based streaming services. The FMM610 provides the client an integrated FM/AM radio solution with excellent sensitivity and sound quality. Featuring 20 configurable presets and manual step or scan tuning function, The FMM610 can be controlled using the Opus touchscreen, IR remote control or using third party controllers such as an iPhone.
Features:
  • FM / AM bands
  • RDS station name (PS) display on FM, or set any name and station artwork via MCU setup
  • 20 configurable presets
  • FM 75 ohm coax and AM 300 ohm aerial connections
  • No other cables required, power is provided by the MCU610
  • Included with MCU610
  • Requires 1 x MCU610 expansion slot
Product URL: http://www.opus.eu/page/opus-fmm610-fm-media-module
Height: 0.00 in
Width: 0.00 in
Depth: 0.00 in
Weight: 0.00 lbs
BTU: 0.00
Volts: Volts
Rack Mounted: No
Rack Units: 0.0
Phase: Finish
Labor Hours: 0.50
Inputs
TerminalLabelSignal
F FM RF
PUSHBUTTON AM RF
PUSHBUTTON GND GND
Outputs
No Outputs

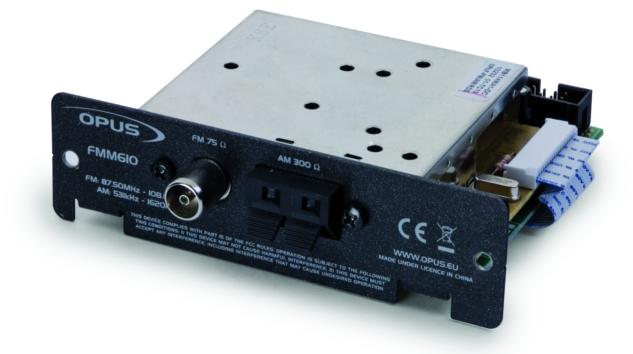

Front Panel Thumbnail 50 x 50 front panel thumbnail image
Front Panel Image 300 x 250 full front panel image
